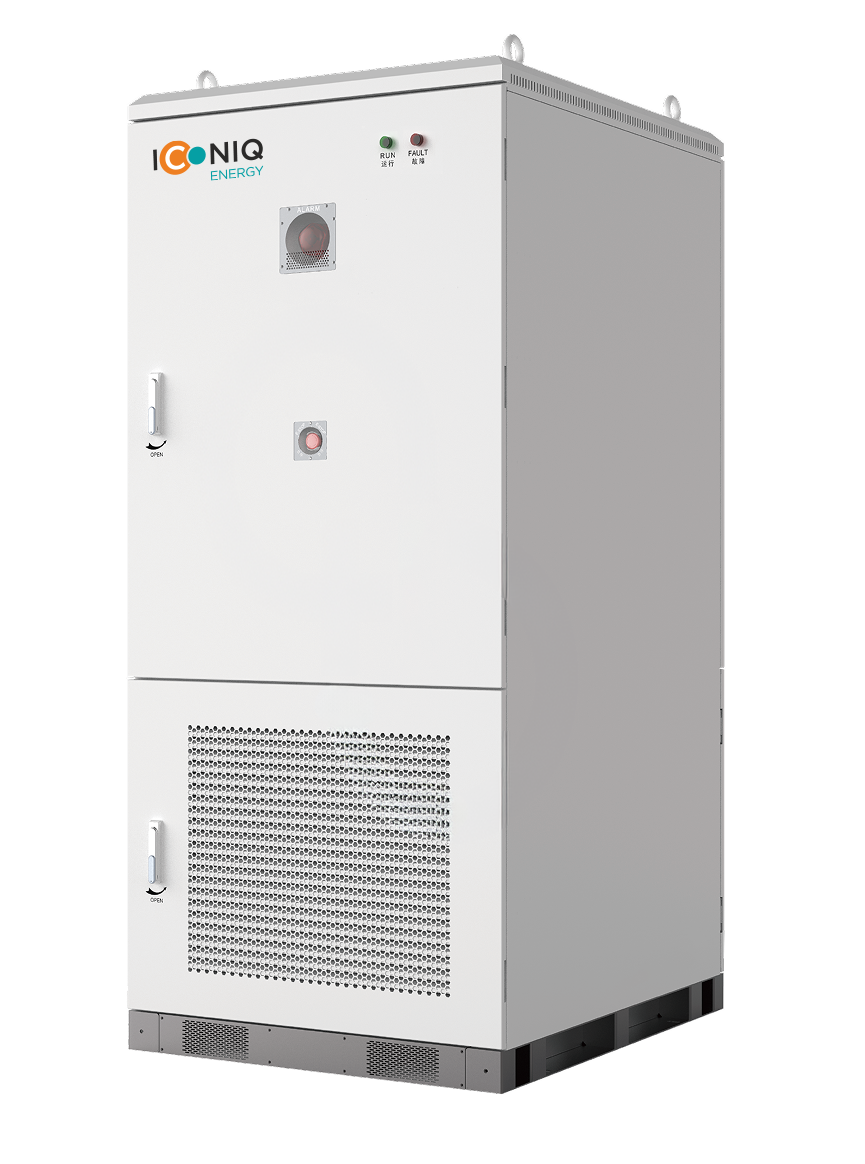

ICE 125KW - 261 kWh
Utility - Battery Energy Storage Systems
High-Performing Intelligent Energy Storage Solutions
INDUSTRY APPLICATIONS OF C&I ENERGY STORAGE SYSTEMS
Manufacturing facilities
High-load machinery and sensitive processes require constant, reliable energy. A BESS helps avoid costly production stops by covering peak demand periods and ensuring backup power during grid instability.
Warehousing and logistics centers
By lowering energy costs and enabling efficient EV fleet charging, industrial energy storage solutions offer real value for large-scale logistics sites. A BESS supports overnight operations, peak-load smoothing, and rapid charging during high-demand periods.
Commercial buildings & RWA's
Retail chains, data centers, and office buildings can use commercial battery storage solutions to stabilize energy consumption, reduce peak tariffs, and support sustainability targets by integrating solar or other renewables.
Fleet depots / Highways/Railways
Electrified fleets need dependable charging infrastructure. A BESS delivers fast, efficient charging while easing demand on the local grid - making it ideal for truck, bus, and delivery depots.
ADVANTAGES OF BESS FOR COMMERCIAL AND INDUSTRIAL SITES
Revenue generation & optimizing operating costs
Store energy when rates are low and use it when demand and pricing spike, manage your load profile and enable grid market revenue generation.
Improved energy reliability
Grid disruptions don't have to stop operations. A BESS provides reliable backup power to critical systems, helping minimize downtime and reduce risk.
Safety and security
Advanced safety features such as fire prevention, liquid cooling, PFAS free direct injection fire suppression, and robust oybersecurity.
Scalability and future-proofing
Modular system design allows for easy capacity expansion to meet growing power needs, future-proofing your investment against market changes.
All-in-one design & turnkey solutions
A turnkey BESS solution helps optimize the full system potential and offers hassle free setup, or it can be delivered as a standalone product.
Environmental and Grid Sustainability
Enabling cost-effective, fast, and sustainable charging solutions, while also supporting grid stability and integrating renewable energy sources.
EXPLORE OUR PRODUCTS
PRODUCT FEATURES
Comprehensive Safety
Proactive Alert Cell-level monitoring, early warning
Multi-Level Protection Pack, cluster, cabin isolation
Fire & Explosion Prevention Triple fire protection, vent design
High Efficiency
High Conversion System efficiency >=87%
Al-Powered Scheduling Optimized energy dispatch
Maximized ROl Peak shaving & other revenue streams
Simple 0&M
Cloud Diagnosis Fault identification in seconds
Remote Management Cloud-based monitoring & control
24/7 technical supporting Expert team always on watch
Easy Deployment
Plug & Play Pre-installed, powered on arrival
Time Saving Drastically reduces installation time
Scalable Design Modular expansion as needed
PRODUCT PARAMETERS
| Cell type | LFP 280Ah |
| Battery Pack capacity and configuration | 46.59kWh |
| Total Battery Capacity | 232.96kWh |
| Rated output voltage | 400V |
| AC rated power | 105kW |
| Weight | 2600kg |
| Dimensions (L*D*H) | 1100(W)x1320(D)x2440(H)mm |
| Cooling concept | Liquid Cooling |

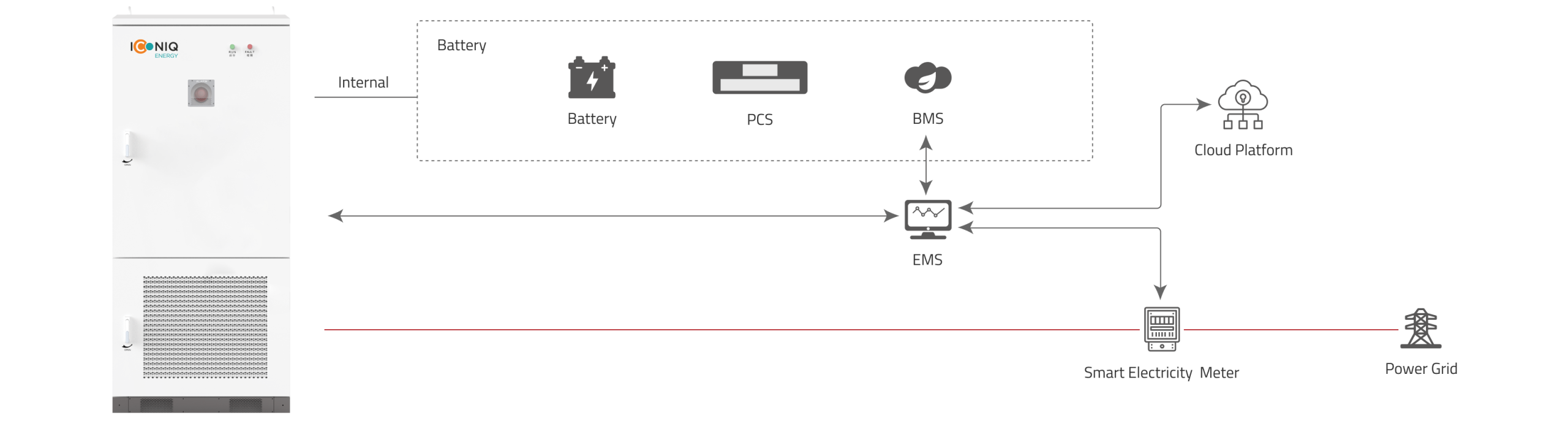

SYSTEM SCHEMATIC DIAGRAM
| Parameter | ICE 125KW – 261 kWh |
|---|---|
| Battery capacity | 261kWh |
| System Configuration | 1P52S |
| Battery Pack Configuration | 52.25kWh |
| Cell type | LFP 314Ah |
| Battery voltage range | 728~936V |
| PACK protection level | IP66 |
| Parameter | ICE 125KW – 261 kWh |
|---|---|
| AC rated power | 125kW |
| Total current waveform distortion rate | ≤3% (at rated power) |
| DC component of current | ≤0.5% (at rated power) |
| Rated grid voltage | 400V |
| Rated output voltage | 400V |
| Grid voltage deviation | -15%~+15% |
| AC overload capacity | 1.1 times long-term |
| AC wiring method | 3P+N+PE |
| Rated grid frequency | 50Hz/60Hz±2.5Hz |
| Power Factor | 0.99/-1~1 |
| AC protection | Circuit breaker + AC lightning protection |
| Parameter | ICE 125KW – 261 kWh |
|---|---|
| Maximum system efficiency | 87% |
| Battery cell cooling method | Liquid Cooling |
| Remote Monitoring | Cloud Platform |
| Noise | ≤75dB@1m |
| Communication interface | Ethernet, RS485 |
| Communication Protocol | MODBUS-TCP/MODBUS-RTU |
| Maintenance method | Double-sided maintenance |
| Installation location | Outdoor |
| Outlet method | Down in and out |
| Operating temperature range | -25°C~55°C |
| Maximum operating altitude | 3000m |
| Operating humidity range | 5%~95%RH, no condensation |
| Corrosion resistance level | C3-M (standard) / C4 / C5 |
| Protection level | Battery compartment IP55 + electrical compartment IP54 |
| Fire protection system | PACK-level aerosol + cabin-level aerosol + water firefighting (optional) |
| Product dimensions (W*D*H) | 1100(W)*1320(D)*2560(H)mm |
| Equipment weight | 2600kg |
| Certifications | GB/T 36276, UN38.3, IEC62619, IEC62477, IEC61000 |
BESS are very flexible and can support and solve many challenges regarding electrification, such as storing intermittent renewable energy or reducing power peaks in constrained grids.
For example, BESS might primarily support electric vehicle charging in a weak grid. But it can also provide additional services like grid support, leading to revenue opportunities, or CO2 optimization of your local energy use.
So, a BESS can provide both revenue opportunities and cost and emission savings.
The system and installation cost depend on your particular needs, the site and the environment in which it should be placed.
Please get in touch with us for a quote.
The payback time depends on your use case, priorities, and location. A typical business case currently shows around five years.
Please contact us for a more specific analysis.
Our products are compliant with EU standards and can be connected to standard 3-phase 400V grids.
BESS can charge all electric applications on site and is brand agnostic, meaning it supports all vehicle types.
As electrification grows, used batteries still have valuable potential. These are reused and repurposed to support charging solutions and reduce carbon footprint.
